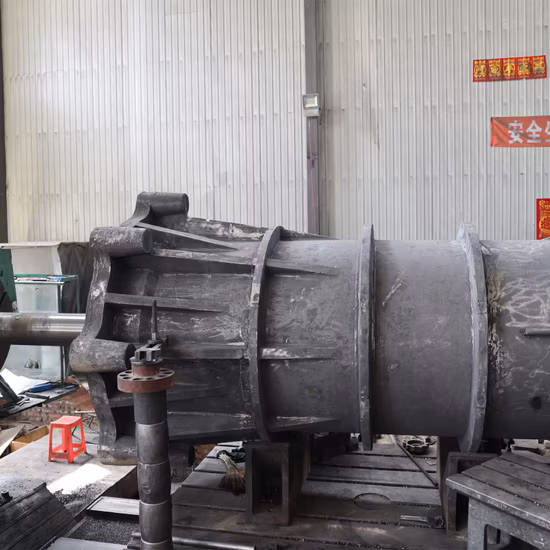

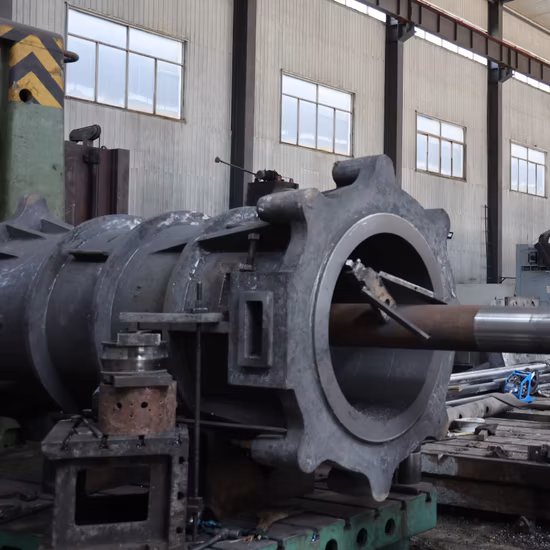

200ton Press Cylinder Made in China

200ton Press Cylinder Made in China

Welcome to FLUTEC HYDRAULICS. FLUTEC HYDRAULICS is an expert at designing and manufacturing a broad range of custom engi;
Basic Info.
Model NO. 500T-1250
Structure Piston Type
Material Alloy Steel
Transport Package Standard Seaworthy Wooden Box
Trademark FLUTEC
Origin Jiangsu, China
HS Code 8412210090
Production Capacity 50000
Product Description
Welcome to FLUTEC HYDRAULICS.
FLUTEC HYDRAULICS is an expert at designing and manufacturing a broad range of custom engineered hydraulic cylinders and cylinder systems as well as custom engineered press bolster plates. We are proud to offer superior quality products and services for various applications including industrial, construction, mobile, agricultural, mining, steel mill, hydraulic press, etc. Our highly skilled team and modern technical facilities allow us to manufacture large bore hydraulic cylinders and long stroke hydraulic cylinders with 100% confidence and assurance.
We understand our customers need dependable quality and excellent services with affordable cost to stay ahead in today's highly competitive market. FLUTEC HYDRAULICS can meet those requirements with our robust, efficient and long life products together with prompt services.
To be mentioned, our sales team is strictly trained both in technology and language. They are full of experiences in fluid power and machinery. We are glad to personally visit our customers to work better.
Technical Data
Cylinder TypeMill type, Head Bolted, Base Welded
Bore DiameterUp to 2500mm
Rod DiameterUp to 2000mm
Stroke LengthUp to 20,000mm
Piston Rod MaterialAISI 1045, AISI 4140, AISI 4340, 20MnV6
Rod Surface TreatmentHard chrome plated, Chrome/Nickel plated, Ceramic coated
Tube MaterialCarbon steel AISI1045 or ST52.3, Alloy steel AISI4140, Stainless steel 2Cr13 or 1Cr17Ni2
Tube Surface PaintingColors according to RAL and thickness according to customer needs
Mounting TypeClevis, Cross tube, Flange, Trunnion, Tang, Thread
Design PressureUp to 40Mpa
Seal Kits TypePARKER, MERKEL, HALLITE, NOK, TRELLEBORG
Quality Assurance1 year
CertificateSGS, BV, ABS ,GL, DNV etc.
ApplicationHeavy industry, steel mill, Hydraulic press, etc.

Quality Assurance

Quality Process
Our quality management system is certified to ISO 9001
Quality control standards include material records, process control plans,
Manufacturing approvals and inspection data

Testing Standards
All products undergo 100% pressure testing 1.5 times the maximum allowable working pressure or to customer specifications
Static and dynamic pressure testing.
Ultraviolet leak detection technology.
Non-destructive testing.
Fluid CleanlinessReal-time monitoring and test phase documentation
Independent sampling and oil diagnostic control

200ton Press Cylinder Made in China


200ton Press Cylinder Made in China
